深圳工控厂家供：8.4寸低功耗Atom 工业平板
- 当前价：￥1
- 产品品牌：SUNPC
- 产品数量：7000台
- 包装说明：1箱/台
- 运输说明：汽运，快递
- 交货说明：1周内
- 付款说明：款到发货
- 所在地：广东深圳
- 重量：0.8（kg）
- 所属类别： 其它数码及音影产品 电脑配件
商情详细信息
深圳市研阳工控科技有限公司（shenzhen SUNPC technology Co.LTD)是一家信誉高，服务优的工控厂商，有高学历的研发人员和技术人员，工厂的组装人员受过长时间的培训，因为产品的高质量，低价格和优质服务受到海内外客户的欢迎。
工业平板电脑支持1.8GHzD525双核CPU,是本公司率先推出的基于ATOMD525dual-coreprocessor1.8GHz处理器一系列强大处理能力、高性能的工业平板电脑系列，符合客户对网络和多功能性的需求，成为快速增长的x86架构嵌入式市场的创新产品。
工业平板显示器，IP65双核平板电脑支持I3,I5,I7CPU和无风扇嵌入式PC，也是本公司的热销海内外的产品。
8.4寸低功耗Atom 工业平板
配置：intel Atom D525处理器,5线触摸屏，320G硬盘，2G内存，DC12V或DC8-30V宽压
IO:2*COM(1xRS232,1XRS485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC
|

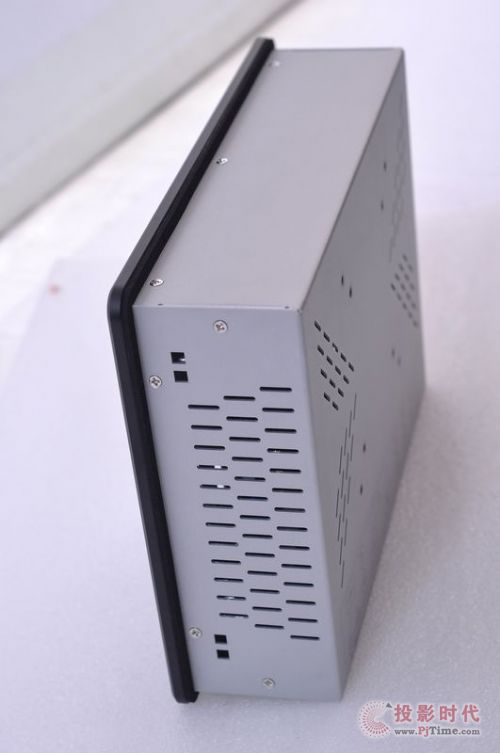

8.4" Slim Line Panel mount Industrial Panel PC
|
|
Feature:
1、Intel Atom D525 Dual-core 1.8GHz Processor
2、Alumiminm magnesium alloy ( better than Alumiminm)
3、IP65 front bazel
4、With 1* Mini PCIe slot
5、Wifi optional
6、RS422/485, 2*Wlan port
7、DC12V power adapter ( DC8-28V optional)
8、Support Window CE,Window XPE,Window XP,Window 7,Winows2k,Linux ect
|
TFT Characteristics |
|
Display Type |
8.4XGA TFT LCD |
Pixel Number |
800 x 600 |
|
Pixel Pitch(RGB) |
0.297*0.297 |
Contrast Ratio |
500: 1 |
|
Light Intensity |
250 nits |
Viewable Angles |
150°(H) , 135°(V) |
|
Max Colors |
16.2MB |
Response Time |
8 ms |
|
MTBF |
50,000hrs. |
|
|
|
System Characteristics |
|
Processor |
Intel Atom D525 Dual-Core 1.8GHz processor CPU with 667 MHz FSB |
Chipset |
Intel NM10 |
|
Memory |
1 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. |
Graphic |
Intel GMA3150
chipset |
|
Storage |
Space for 1x 2.5" SATA HDD / SSD/ 1 compact flash card slot |
Audio |
Realtek ALC662,5.1 Channel surround Audio |
|
USB Port |
4 x USB 2.0 |
Ethernet |
100/1000M Ethernet |
|
VGA Port |
1 x VGA Connector |
Expansive Slot |
1 x Mini PCIe |
|
Serial Port |
2 x COM ( 1X RS232,1XRS422/485) |
Speakers |
Optional |
|
VGA port |
1 x VGA Connector |
Watchdog Timer |
255 Levels , 1-255 sec. |
|
Available Options |
|
Touch Screen |
5 Wire Resistive |
Wireless LAN/Wifi |
Meet IEEE802.11b/g
standard. |
|
DC Power Input |
Standard is DC12V input (DC 8 -28V, DC9-36V is optional ) |
Speakers |
2 x 2w |
|

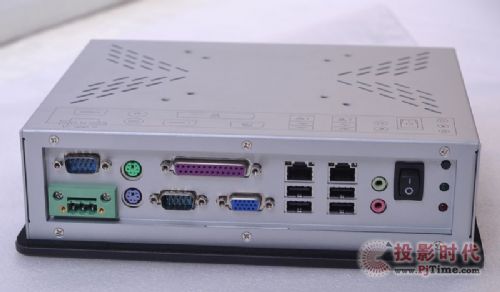

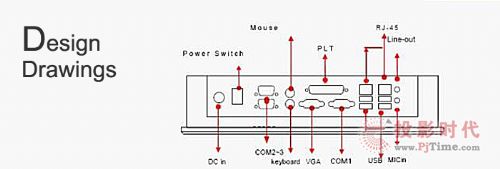

I/O Connector |
|
PS/2 |
1 x PS2 for KB/ Mouse |
Lan |
2 x 100/1000 Lan port(RJ-45) ) |
|
VGA |
1 x VGA |
USB |
4x USB 2.0 |
|
RS-232 |
2 x COM ( 1X RS232, 1X RS422/485) |
Power Switch |
1 x Power Switch |
|
DC Input |
1 x Lockable DC Input connector |
Audio |
1 x Lin-in /Lin-out / Mic-in |
|
Mechanical and Environmental |
|
Construction |
Aluminum front bazel and silver Color Coating |
Storage humidity |
210% to 90%non-condensing |
|
Operating temperature |
32°F~125°F ( 0 °C to 50 °C) |
Anti-Vibration |
17 to 500Hz 1G PTP |
|
Storage temperature |
-4°F~140°F ( -20 °C to 60 °C) |
Dimensions (WxHxD |
248.8 x 196.8 x 70 mm |
|
Anti-Shock |
1g/ peak(11ms) |
Weight |
Net: 3KG , Volume Gross: 5.5KG |
|
Power Supply
|
|
Output |
DC12V@ 1A / 120W external AC Power Adapter with Lockable connector |
Input |
100~240VAC,50/60Hz |
|
Certification |
CE/FCC/ RoHS |
|
|
Ordering Information
|
IPPC-084D-2R ：8.4" Slim Line Panel Mount Industrial Panel PC with 8.4”5 wire resistive touchscreen,Intel Atom D525 Dual-Core 1.8GHz processor,320G HDD,2G DDR3 RAM, DC12V power supply
|
|
|
Optional: |
|
Storage |
16G SSD/32GSSD/8G CF card |
|
Wireless LAN |
Wifi |
|
Power supply |
DC8-30V |
|
Speakers |
2 x 2W |
