最新供应 | 公司介绍
深圳市研阳工控科技有限公司（shenzhen SUNPC technology Co.LTD)是一家信誉高，服务优的工控厂商，有高学历的研发人员和技术人员，工厂的组装人员受过长时间的培训，因为产品的高质量，低价格和优质服务受到海内外客户的欢迎。
工业平板电脑支持1.8GHzD525双核CPU,是本公司率先推出的基于ATOMD525dual-coreprocessor1.8GHz处理器一系列强大处理能力、高性能的工业平板电脑系列，符合客户对网络和多功能性的需求，成为快速增长的x86架构嵌入式市场的创新产品。
工业平板显示器，IP65双核平板电脑支持I3,I5,I7CPU和无风扇嵌入式PC，也是本公司的热销海内外的产品。

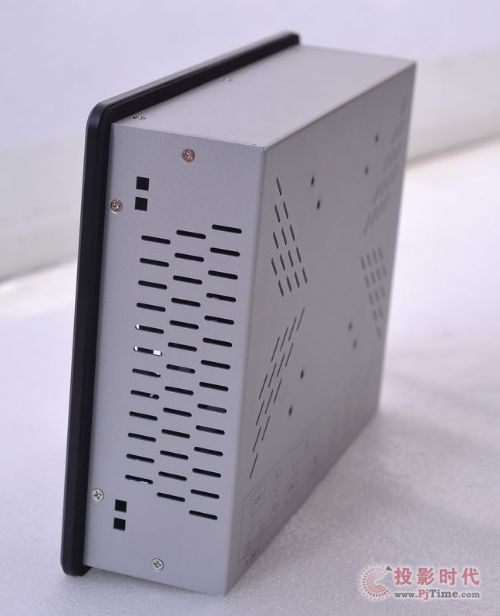

| 10.4" Slim Line Panel mount Industrial Panel PC |
|
Feature: |
| TFT Characteristics | |||
| Display Type |
10.4XGA TFT LCD |
Pixel Number | 800 x 600 |
| Pixel Pitch(RGB) | 0.297*0.297 | Contrast Ratio | 500: 1 |
| Light Intensity | 250 nits | Viewable Angles | 150°(H) , 135°(V) |
| Max Colors | 16.2MB | Response Time | 8 ms |
| MTBF | 50,000hrs. | ||
| System Characteristics | |||
| Processor | Intel Atom D525 Dual-Core 1.8GHz processor with 667 MHz FSB | Chipset | Intel NM10 |
| Memory | 1 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. | Graphic |
Intel GMA3150 chipset |
| Storage | Space for 1x 2.5" SATA HDD / SSD/ 1 compact flash card slot | Audio | Realtek ALC662,5.1 Channel surround Audio |
| USB Port | 4 x USB 2.0 | Ethernet | 100/1000M Ethernet |
| VGA Port | 1 x VGA Connector | Expansive Slot | 1 x Mini PCIe |
| Serial Port |
3 x COM( 2X RS232,1X RS422/485) |
Speakers | Optional |
| VGA port | 1 x VGA Connector | Watchdog Timer | 255 Levels , 1-255 sec. |
| Available Options | |||
| Touch Screen | 5 Wire Resistive | Wireless LAN/Wifi |
Meet IEEE802.11b/g standard. |
| DC Power Input | Standard is DC12V input (DC 8 -28V, DC9-36V is optional ) | Speakers | 2 x 2W |

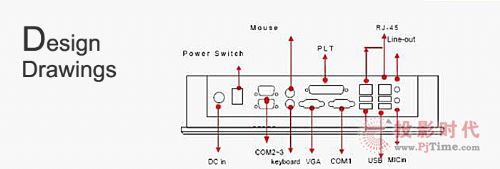

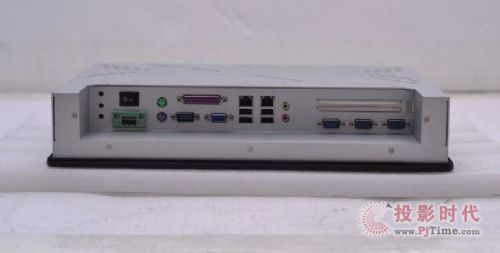

| I/O Connector | |||
| PS/2 | 1 x PS2 for KB/ Mouse | Lan | 2 x 100/1000 Lan port(RJ-45) ) |
| VGA | 1 x VGA | USB | 4x USB 2.0 |
| RS-232 |
3 x RS-232 (1X RS422/485) |
Power Switch | 1 x Power Switch |
| DC Input | 1 x Lockable DC Input connector | Audio | 1 x Lin-in /Lin-out / Mic-in |
| Mechanical and Environmental | |||
| Construction | Aluminum front bazel and silver Color Coating | Storage humidity |
10% to 90%non-condensing |
| Operating temperature | 32°F~125°F ( 0 °C to 50 °C) | Anti-Vibration | 17 to 500Hz 1G PTP |
| Storage temperature | -4°F~140°F ( -20 °C to 60 °C) | Dimensions (WxHxD |
287.4 x 227.4 x 68 mm |
| Anti-Shock | 1g/ peak(11ms) | Weight |
Net: 3.5 KG , Volume Gross:5.5KG |
|
Power Supply |
|||
| Output | DC12V@ 1A / 120W external AC Power Adapter with Lockable connector | Input | 100~240VAC,50/60Hz |
| Certification | CE/FCC/ RoHS | ||
Ordering Information
|
10.4" Slim Line Panel Mount Industrial Panel PC with 10.4"5 wire resistive touchscreen,Intel Atom D525 Dual - Core 1.8GHz processor, 320G HDD ,2G DDR3 RAM, DC12V power supply |
|
| Optional: | |
| Storage | 16G SSD/32G SSD/8G CF card |
| Wireless LAN | Wifi |
| Power supply | DC8-30V |
| Speakers | 2 x 2W |
