19寸Atom D525工业触摸电脑
Intel Atom D525 1.8G处理器，五线触摸屏，320G硬盘，DC12V/DC8-30V电源（所有物料采用工业标准）

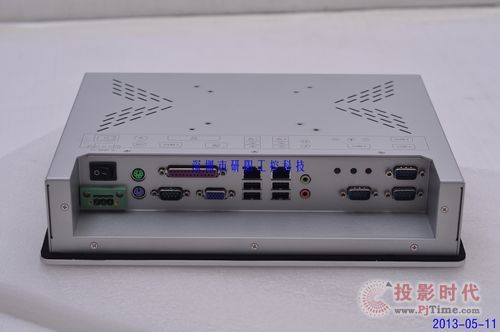

IO：4*COM( 3xRS232,1XRS232/422/485), 2*PS2, 1*VGA, 1*LPT, 4*USB, 2*LAN, 1* Audio, 1* MIC, 1x PCI,1x PCIe
| 19" Slim Line Panel mount Industrial Panel PC |
|
Feature: |
| TFT Characteristics | |||
| Display Type |
19XGA TFT LCD |
Pixel Number |
1280 x 1024 |
| Pixel Pitch(RGB) | 0.297*0.297 | Contrast Ratio |
1300: 1 |
| Light Intensity |
350 nits |
Viewable Angles | 150°(H) , 135°(V) |
| Max Colors | 16.2MB | Response Time | 8 ms |
| MTBF | 50,000hrs. | ||
| System Characteristics | |||
| Processor | Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB | Chipset | Intel NM10 |
| Memory | 1 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. | Graphic |
Intel GMA3150 chipset |
| Storage | Space for 1x 2.5" SATA HDD / SSD/ 1 compact flash card slot | Audio | Realtek ALC662,5.1 Channel surround Audio |
| USB Port | 4 x USB 2.0 | Ethernet | 100/1000M Ethernet |
| VGA Port | 1 x VGA Connector | Expansive Slot |
1XPCI, 1 x Mini PCIe |
| Serial Port |
4 x COM( 3X RS232,1X RS422/485) |
Speakers | Optional |
| VGA port | 1 x VGA Connector | Watchdog Timer | 255 Levels , 1-255 sec. |
| Available Options | |||
| Touch Screen | 5 Wire Resistive | Wireless LAN/Wifi |
Meet IEEE802.11b/g standard. |
| DC Power Input | Standard is DC12V input (DC 8 -28V, DC9-36V is optional ) | Speakers | 2 x 2W |

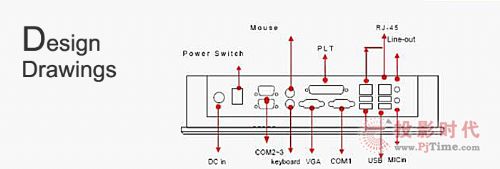

| I/O Connector | |||
| PS/2 | 1 x PS2 for KB/ Mouse | Lan | 2 x 100/1000 Lan port(RJ-45) ) |
| VGA | 1 x VGA | USB | 4 x USB 2.0 |
| RS-232 |
4 x COM(3XRS232,1X RS422/485) |
Power Switch | 1 x Power Switch |
| DC Input | 1 x Lockable DC Input connector | Audio | 1 x Lin-in /Lin-out / Mic-in |
| Mechanical and Environmental | |||
| Construction | Aluminum front bazel and silver Color Coating | Storage humidity |
10% to 90%non-condensing |
| Operating temperature | 32°F~125°F ( 0 °C to 50 °C) | Anti-Vibration | 17 to 500Hz 1G PTP |
| Storage temperature | -4°F~140°F ( -20 °C to 60 °C) | Dimensions (WxHxD |
456x 371 x 79 mm |
| Anti-Shock | 1g/ peak(11ms) | Weight |
Net: 8.5KG , Volume Gross:11 KG |
|
Power Supply |
|||
| Output | DC12V@ 1A / 120W external AC Power Adapter with Lockable connector | Input | 100~240VAC,50/60Hz |
| Certification | CE/ FCC/ RoHS | ||
Ordering Information
|
IPPC-190D-2R 19" Slim Line Panel Mount Industrial Panel PC with 19”5 wire resistive touchscreen, Intel Atom D525 Dual-Core 1.8GHz processor,320G HDD,2G DDR3 RAM, DC12V power supply |
|
| Optional: | |
| Storage | 16G SSD/32G SSD/8G CF card |
| Wireless LAN | Wifi |
| Power supply | DC8-28V, DC9-36V |
| Speakers | 2 x 2W |
