供应15寸工业显示器VGA+DVI+AUDIO
- 当前价：￥1
- 产品品牌：SUNPC
- 产品数量：6000台
- 包装说明：每箱1台
- 运输说明：汽运，快递
- 交货说明：1周内
- 付款说明：款到发货
- 所在地：广东深圳
- 重量：0.8（kg）
- 所属类别： 其它数码及音影产品 电脑配件
商情详细信息
深圳市研阳工控有限公司(shenzhen SUNPC technology Co.ltd)是一家信誉高，服务优的工控厂商，有高学历的研发人员和技术人员，工厂的组装人员受过长时间的培训，因为产品的高质量，低价格和优质服务受到海内外客户的欢迎。
工业平板电脑支持1.8GHzD525双核CPU,是本公司率先推出的基于ATOMD525dual-coreprocessor1.8GHz处理器一系列强大处理能力、高性能的工业平板电脑系列，符合客户对网络和多功能性的需求，成为快速增长的x86架构嵌入式市场的创新产品。
工业平板显示器，IP65双核平板电脑支持I3,I5,I7CPU和无风扇嵌入式PC，也是本公司的热销海内外的产品。
|

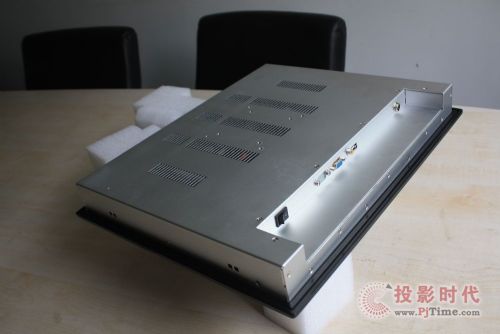

15" Industrial LCD Monitor IPM-15 |
|
1. 15" SVGA TFT LCD Panel support 1024x768pixels
2. 6mm Aluminum front bezel with strengthen glass
3. Rugged construction and modularized design
4. Input signal : VGA +DVI+ Audio
5. 250 cd/m2 brightness
6. OSD control keys to optimize the display
7. AC 100-240V wide range external ac adapter
8. Panel(Flush) mount with bracket
9. NEMA4 / IP 65 compliant front panel
|
|
TFT Characteristics |
|
Display Type |
15" SVGA TFT LCD SVGA TFT LCD
|
Resolution
|
1024 x 768
|
|
Pixel Pitch(RGB)
|
0.297x 0.297 mm
|
Contrast Ratio
|
700 : 1
|
|
Light Intensity |
250 cd/m2
|
Viewable Angles
|
178°(H) , 160°(V)
|
|
Max Colors |
16.2M
|
Response Time
|
8 ms
|
|
MTBF |
50,000hrs.
|
|
|
|
Available Options
|
|
Touch Screen
|
Resistive type with USB and RS232 controller
|
|
DC power input
|
Wide Range 8-30V DC input
|
|
AV input
|
Composite Video/Audio, S-video input
|
|
Power Specifications
|
|
Input
|
100~240VAC,50/60Hz
|
|
Output
|
DC12V@5A/60W,external AC adapter
|
|
Mechanical and Environmental
|
|
Construction
|
Heavy duty steel and aluminum front panel
|
|
Dimension (WxHxD)
|
375x300x42mm
|
|
Weight
|
Net: 6.00KG, Gross: 8.00KG
|
|
Operating temperature
|
32 °F~113 °F (0 °C to 50 °C)
|
Storage temperature
|
-4 °F~140 °F (-20 °C to 60 °C)
|
|
Storage humidity
|
10% to 90%non-condensing
|
Vibration
|
17 to 500HZ 1G PTP
|
|
Anti-Shock
|
1G /peak( 11m sec)
|
|

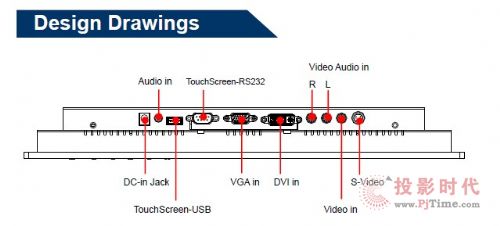

Input Signals
|
|
RGB Signal
|
D-SUB 15p Connector( Female)
|
|
DC input
|
DC jack (2.1mm)
|
|
Video Input (option)
|
RCA Connector
|
|
S-Video Signal (option)
|
S-Video (Svhs) Plug
|
|
DVI-D Signal
|
DVI-D input 24pin connector (Female)
|
|
Touch screen RS232 (option)
|
D-SUB 9p Connector (Female)
|
|
Touch screen USB (option
） |
USB-A Type connector (Female)
|
|
Certification and Approvals
|
|
Certificate & Approvals |
CE/ RoHS |
|
|
Ordering Information
|
VGA+DVI input
|
|
IPM-15
|
15" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input
|
|
IPM-15T/C
|
15" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input ,with Touch screen and RS232 controller
|
|
IPM-15T/U
|
15" Industrial Flat Panel Monitor with VGA+ DV I+ Audio input ,with Touch screen and USB controller
|
|
AV input
|
|
IPM-15A
|
15" Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input
|
|
IPM-15AT/C
|
15" Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input ,with Touch screen and RS232 controller
|
|
IPM-15AT/U
|
15 " Industrial Flat Panel Monitor with VGA+ DV I+ Audio + S-Video + Video input or BNC input ,with Touch screen and USB controller
|
|
DC-DC power
|
DC8~30V input power module
|
 |
IPM-15 datesheet 360.38 KB |
|
|
|
|
