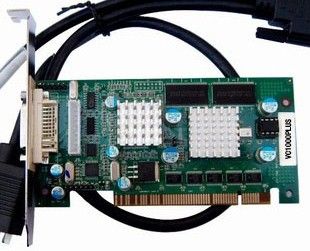

Board Format:

32 bit, up to 33MHz PCI, half size plug-in card 66mm x 135mm.
PCI Bus Master with scatter/gather DMA providing up to 132MB/sec.

Connectors:

one channel RGB input and one channel RGB loop back output

Maximum Sample Rate:

140 Mpixels per second.

Video Sampling:

RGB: 24 bits per pixel/8-8-8 format.

Video Capture Memory:

Total 32 MB

Analog RGB Mode Support:

640 x 480, 800 x 600, 1024 x 768, 1280 x 1024

Input Mode Detection:

Automatic detection of input modes in hardware enabling the tracking of mode changes in the source signal.

Pixel Display Formats:

RGB: 565 or 888 pixels.
YUV 4:2:2: UYVY.

YUV 4:2:0 plane mode suitable for encode

Update Rate:

User defined, typically up to 30 frames per second, limited by available bandwidth.
Triple buffered to eliminate tearing artifacts.

Video Format Options:

Analog RGB plus HSync and VSync (5 wire)

Operating System Support:

Windows® 2000 Professional, Windows® XP Professional and Windows® Server 2003.

Power Requirements:

Max current at +3.3V – 2.5A.
Max current at +5V – 0.1A.
Max power – 8 Watts.

Operating Temperature:

0 to 35 deg C.

Storage Temperature:

-20 to 70 deg C.

Relative Humidity:

5% to 90% non-condensing.

Analog Input Range:

Min 0.35Vpp Nom. 0.7Vpp Max 1.4Vpp

Hsync:

15kHz - 85kHz

Vsync:

No hardware limits, typically 25Hz - 100Hz for real signals

Separate Sync Polarity:

Positive or Negative

Inputs

75 Ohm terminated
